Dismantling Joint
- For joining two metallic pipes / fittings with both flanged ends
- Flanged connection to BS EN 1092-2
- Ductile iron body with epoxy coating
- EPDM gasket
- PN16
- DN 80-600mm
Flange Adapter
- For water meter connection
- For joining two metallic pipes / fittings with one end spigot and one end flange
- Flanged connection to BS EN 1092-2
- Ductile iron body with epoxy coating
- EPDM gasket
- WSD General Acceptance (GA) approved
- PN16
- DN 80-600mm
Slip On Coupling
- For joining two metallic pipes / fittings with both plain (spigot) end, such as drainage epoxy cast iron pipe (EN 877) and ductile iron pipe (EN 598)
- Flanged connection to BS EN 1092-2
- Ductile iron body with epoxy coating
- EPDM gasket
- PN16
- DN 80-600mm
- For certain sizes where the OD size range is too large, please contact KHK for further solutions

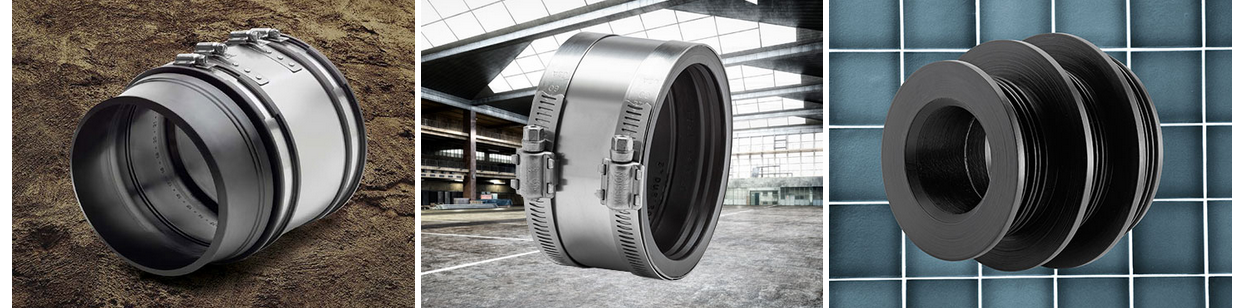

Mücher Dichtungen couplings and seals for all (plain end) pipes used in low pressure civil and drainage

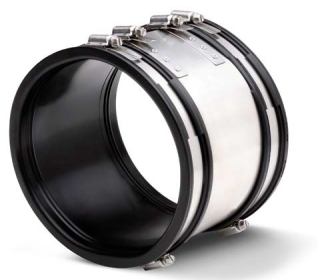

Canada Plus Type 2B (MSC)
- Connection of all pipe systems with different or same outside diameter, for instance epoxy cast iron drainage pipe (EN 877) to plain end ductile iron pipe (EN 598)
- Resistant to 2.5 bar below or above ground
- EPDM rubber to EN 681-1 with SS304 or SS316 coupling
Adapter Coupling (MAC)
- Connection of all pipe systems with different outside diameter
- Connection of epoxy cast iron drainage pipe (EN 877) to carbon steel pipe (BS EN 10255)
- Connection of epoxy cast iron drainage pipe (EN 877) to BS 437 cast iron pipe
- Connection of epoxy cast iron pipe (EN 877) DN50 to Vulcathene chemical waste drainage PP pipe 1-1/2” pipe (nominal OD 48.3mm) using MAC 0633
- Resistant to 0.6 bar below or above ground
- EPDM rubber to EN 681-1
Rubber Flexible Joint
- Sound and vibration absorption
- EPDM rubber
- Suitable for potable, chilled, flushing water
- PN16 BS EN 1092-1 carbon steel flanges
- DN32-600
- Control / tie rods available upon request
Stainless Steel Flexible Joint
- For compensating pipe misalignment
- Suitable for potable water
- Absorb thermal expansion of pipe
- Absorb vibration
- DN25-300
- Carbon steel (BS EN 1092-1) loose flanges with SS304 hoses in 300mm length
- Pressure tested to BS EN 12266-1
- PN16 and PN25
Stainless Steel Expansion Joint
- To absorb axial movements (elongation and compression) on piping systems caused by thermal changes
- Suitable for potable, chilled or seawater
- DN20-300
- SS304 and SS316 stainless steel (BS EN 1092-1) flanges and bellow options
- Pressure tested to BS EN 12266-1
- PN16
