Isothermal Humidification (Steam)

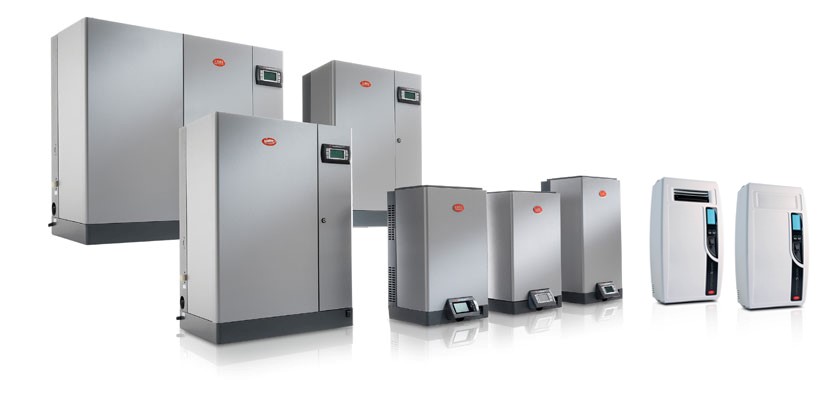

Immersed Electrode Humidifiers (humiSteam)
- Most common applications: commercial, hospitals
- Capacity: 1.5 - 130 kg/h
- Precision: +/- 5%
- Feedwater: main water / drinking water
- Humidity can be controlled by an external device such as a BMS or humidostat or to a single probe
- Spare parts such as cylinders available
- Stainless steel steam distributors for duct
Adiabatic Humidification

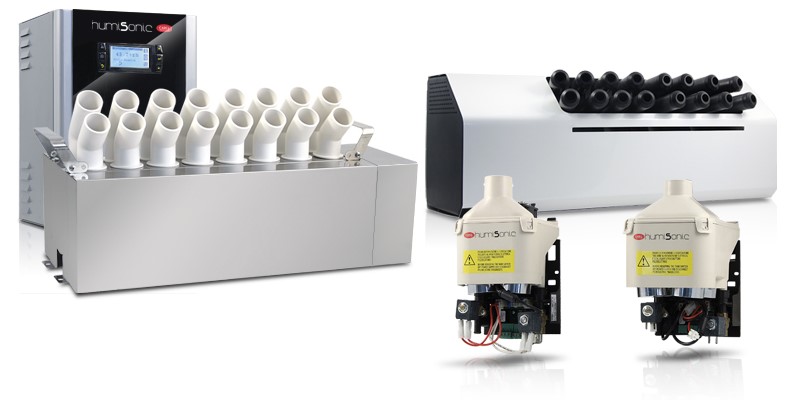

Ultrasonic Humidifiers (humiSonic)
- Most common applications: data centres, museums, libraries
- High energy efficiency with energy consumption per kg of evaporated water 90% lower than with steam
- Atomised water production of 0.5 - 1 kg/h (humiSonic compact), 2 - 8 kg/h (humiSonic direct), 2.4 – 18 kg/h (humiSonic Ventilation)
- Fine mist and very small droplets (5 µm on average)
- Precision: +/- 1%
- Guaranteed for 10,000 operating hours when running on demineralised water

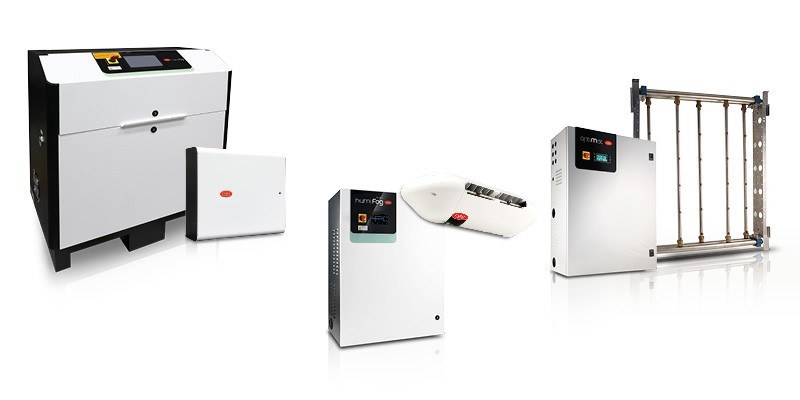

Pressurised Water Humidifiers
- High water pressure (generally 70 bars) by a special volumetric pump to achieve very fine atomisation through special nozzles for larger scale application
- Very low power consumption
- Maximum hygiene
- humiFog Multizone Touch is available in the following sizes: 150, 300, 500, 800, 1200 l/h with the standard piston pump and 250, 600, 1350 l/h with the oil-free piston pump

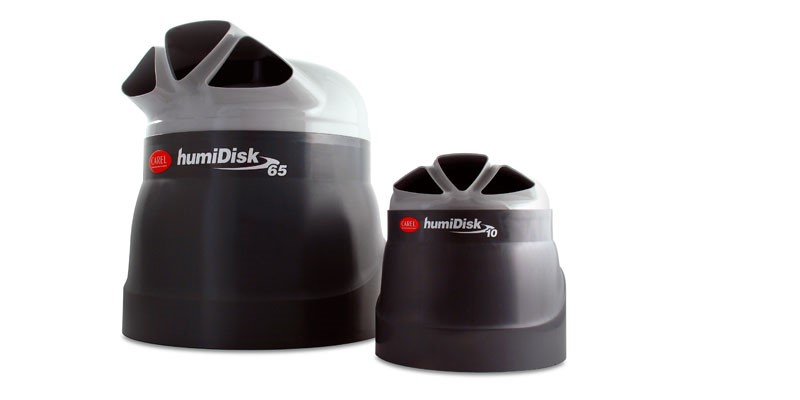

Centrifugal Humidifiers (humiDisk)
- smaller capacity from 1.1 to 6.5 kg/hr
- very small water tank of 55 ml
- hygienically safe
